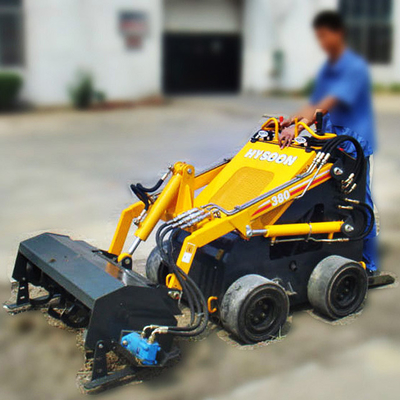

Mini agriculture tiller, mini multipurpose agricultural machine mini skid steer loader with tiller
Parameters
1)Size | |
Dimension(L*W*H) | 2206mm* 1160mm* 1233mm |
Length | 2206mm |
Width | 1160mm |
Height | 1233mm |
Bucket Width(K) | 1150mm |
Max Working Height | 2143mm |
Max Dumping Height | 1488mm |
Max Dumping Distance | 348mm |
Total Length without Bucket | 1752mm |
Turn Radius forward Turning | 1307mm |
2)Engine | |
Rated Power (KW) | 17.1KW |
Rotating Speed | 3600rpm |
Noise(Dd) | ≤95 |
3)Hydraulic System | |
Pressure | 17Mpa |
Operating Load | 200kg |
Bucket Capacity | 0.15m³ |
Max Lifting Force | 375kg |
Travel Speed | 0-5.5km/h |
Weight | 890kg |
4)Configuration | |
Engine | 23hp American Briggs& Stratton gasoline engine, 3 year international warranty service. |
Parts | Imported Italy hydrocontrol valves; |
Tires | With engineering tires. Optional: Solid tires, grass tires and Track(crawler) Type. |
Optional Configuration | Italy joystick system, three pump & valves for optional; Diesel engine for optional |
Operating | With a back pedal plate |
Features
Operation:
1) Two handles to achieve operation of working, lifting and dumping.
2) 4 wheels drive, suitable for various environment.
3) Safe pedal, stand operating way.
4) 360° pivot steering. Save space, Flexible and operating easily.
5) Compact design can for any small space working.
6) Quick hitch system makes fastening attachments quickly and eaily.
7) A loader serves several functions. Hy380 can with various attachment for different working need. Quick hitch system, attachments can be changed quickly and easily.
8) Compare with same kind of products, hy380 mini loader is with higher lifting height.
Easy maintenance:
1) Easy to put oil and replace Air filter, filter, spark plug, etc.
2) Back shrouds can be took easily, parts can be checked by opening upper canopy.
Wheel type and track type for optional
HY380 Mini Skid Steer Loader with digger etc various attachments
A loader serves several purposes, with a quick hitch system,the HY380 mini skid steer loader can change various attachments for more functions quickly and eaily. Attachments: backhoe, digger, sweeper, dump bucket, tiller, lawn mower, angle blade, breaker,4 in 1 bucket, snow blower, leveler, mixer, lawn aerator, trench filler, trencher,grapple,,auger,stonr bucket, auger levers, standard bucket, trailer system, and so on.
Usage:
Land sorting, Garden, Snow removal, Mining, Landscaping, Construction, Dairy industry,
Farm, Livestock farm , Waste(animal waste, municipal solid waste, life garbage) removal,
ditching, truck loading ,tree planting and so on.
Certifications
LCL: steel frame & Plywood packing.
FCL: 8 Sets for 20 feet container, 16 sets for 40 feet container.
* 1 year warranty. (Engine warranty is 3 years, International warranty service.)
* 24h hours technical support.
* Calling or Door to door service.
* Supply High Quality Small Wheel Loader for You At Reasonable Price.
* Accept Your Customization.
* Opened Trade Assurance of Alibaba. Gold Supplier.
