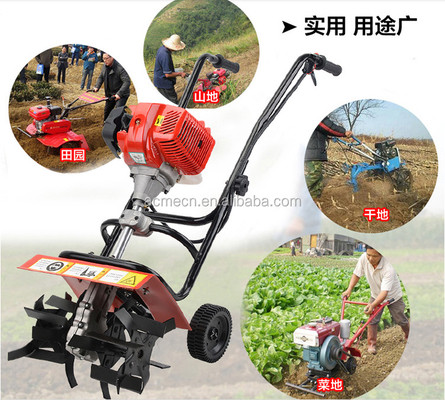

Mini rotary tiller power tiller gn-12 mini power tiller in india
Characters
1.Multi-functional: mini tiller is matched with new machine tools continuously; new functions are added to the mini tiller;
based on the perfection of agriculture-oriented functions, the function of mini tiller is expanded to the field of urban
garden and gardening.
2.Selection and utilization of adaptable engines: more engines with low noise, small emission, powerful driving force and
strong adaptability
3. Rapid replacement of work piece: in order to reduce labor intensity of operator and save time in replacing agricultural
implements, hooking of mini tiller and its matched machine tools adopts rapid hooking device, which makes dismantle
and replacement of agricultural tools simple and fast.
Specification
Model | 1WG4.0-170 | ||
Type | Straight Gasoline power tiller | ||
Max. power(Horsepower/rpm) | 5/3600 | ||
Dimension(L*W*H)mm | 1780x900x850 | ||
Clutch | By Friction | ||
Tyre specification | 4.00-8 | ||
Output shaft speed (rpm) | 3600/1800 | ||
total Weight(kg) | 60kg | ||
speed (Kilometer/h) | forward | slow | 6.29 |
Armrest frame turning Angle | 90° | ||
Max. tilling depth | &;100mm | ||
Average tilling width | 900-1000mm | ||
Broken soil rate | &;50% | ||
Production capacity | 666-200m2/h | ||
Max.fuel consumption | ≤0.6L/mu | ||
Model | 170F | ||
Type | 5HP4-stroke, single-cylinder ,Vertical Type, Direct injection | ||
cooling | Air-cooled | ||
Rated power kw | 2.8kw/3000rpm | ||
Max.Output | 3.1kw/3600rpm | ||
start method | Recoil manual | ||
cylinder bore x stroke(mm) | 70x55 | ||
capacity of oil box | 2.5L | ||
capacity of engine oil | 0.75L | ||
