Model No | 1Z-20 | Remarks |
Dimension(mm) | 1570 x900 x1000mm |
|
Matched power | 2.21-3KW | Diesel engine |
Plough width | 200±50mm | - |
Plough depth | 8-15cm | - |
Tilling width | 1000mm | - |
Working Efficiency | Plough: 800-900m²/h | - |
| Rolling, harrowing: 1000-1200m²/h |
|
Turning Radius | 1.2m | - |
Fuel Consumption | Plough, rolling: 1.2kg/1000m² | - |
| Harrowing: 0.5kg/1000m² |
|
Total Weight | 65kg+15kg(roller) | Without Diesel |
Matched parts | roller | |
Package | Each one Packed into a Carton, carton size is 123*63.5*66cm | |

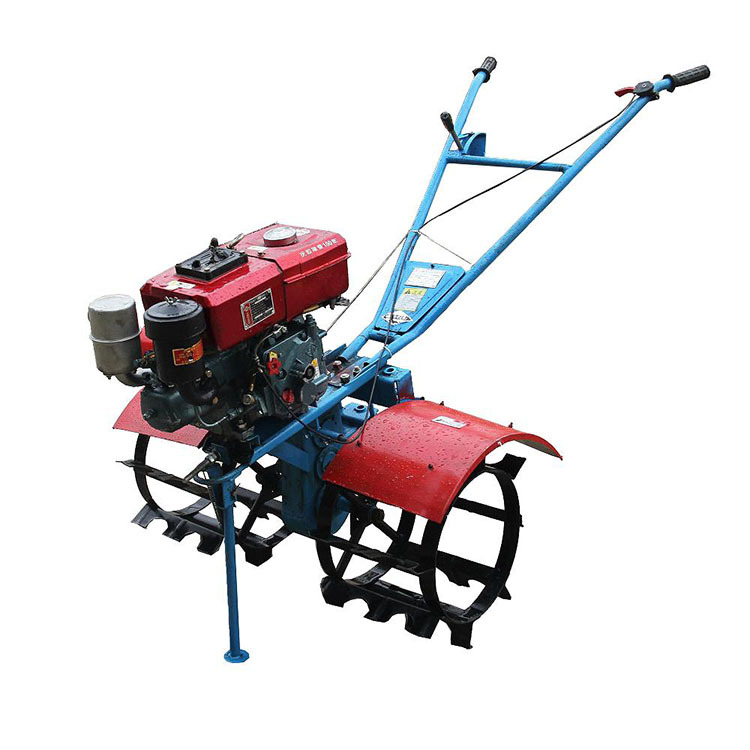

Main Features:
This machine is of small size, light weight, security and stability, convenience to transport and transfer in fields,
Wide range of application, low technical requirements of tractor driver's technology to drive the machine and is energy-efficient,
When plowing, it leaves no corner and small dead ends, and it is convenient to turn around and able to make a 180-degree turn taking the plow as the axis,
Good harrowing leveling effect: rolling fields device has reasonable structure, wide range of application and high efficiency,
It has the advantages of easy and flexible operation, low labor intensity of tractor driver and low technical requirements.
